1-skärig fräs, stort spånspår

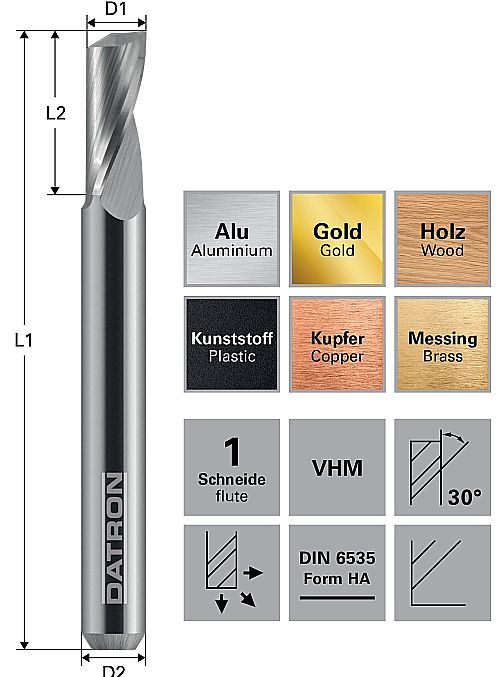

Datron 1-skärig fräs med plan botten och stor spånkanal. Datron single flute end mill with flat bottom and large chip channel.
Skicka offertförfråganMer info
- Fräs
- 1-skärig med plan botten
- Stor spånkanal
- 30° Upcut spiral
- Skaft utan spännyta DIN 6535-HA
- Solid hårdmetall (VHM)
BS = Alcrona-beläggning
Dessa speciellt slipade Datron fräsverktyg är designade för att fräsa med mycket höga matningar och har en hög och effektiv spånmatning.
För Aluminium, Plast, Trä, Guld, Koppar och Mässing. - End Mill
- Single flute with flat bottom
- Large chip channel
- 30° Upcut spiral
- Shank without clamping surface DIN 6535-HA
- Micrograin solid carbide
BS = Alcrona coating
These specially cut Datron end mill is designed for milling with very fast feed rates and has a very high chip removal capacity.
For Aluminium, Plastic, Wood, Gold, Copper and Brass.
Varianter / Prisinfo
| Artikelnr | Produktdata | Pris (SEK) | ||
|---|---|---|---|---|
|
950006 8003E
Lev: 0068003E |
1-skärig fräs / Single flute end mill D1: 0,3 mm, D2: 3,0 mm, L1: 38,0 mm, L2: 1,0 mm |
215,00 | Beställ | Beställ |
|
950006 8004E
Lev: 0068004E |
1-skärig fräs / Single flute end mill D1: 0,4 mm, D2: 3,0 mm, L1: 38,0 mm, L2: 1,0 mm |
215,00 | Beställ | Beställ |
|
950006 8005E
Lev: 0068005E |
1-skärig fräs / Single flute end mill D1: 0,5 mm, D2: 3,0 mm, L1: 38,0 mm, L2: 1,5 mm |
215,00 | Beställ | Beställ |
|
950006 8006E
Lev: 0068006E |
1-skärig fräs / Single flute end mill D1: 0,6 mm, D2: 3,0 mm, L1: 38,0 mm, L2: 2,5 mm |
215,00 | Beställ | Beställ |
|
950006 8606E
Lev: 0068606E |
1-skärig fräs / Single flute end mill D1: 0,6 mm, D2: 3,175 mm, L1: 38,0 mm, L2: 2,5 mm |
170,00 | Beställ | Beställ |
|
950006 8008E
Lev: 0068008E |
1-skärig fräs / Single flute end mill D1: 0,8 mm, D2: 3,0 mm, L1: 40,0 mm, L2: 3,0 mm |
215,00 | Beställ | Beställ |
|
950006 8608E
Lev: 0068608E |
1-skärig fräs / Single flute end mill D1: 0,8 mm, D2: 3,175 mm, L1: 38,0 mm, L2: 3,0 mm |
170,00 | Beställ | Beställ |
|
950006 8010E
Lev: 0068010E |
1-skärig fräs / Single flute end mill D1: 1,0 mm, D2: 3,0 mm, L1: 38,0 mm, L2: 4,0 mm |
215,00 | Beställ | Beställ |
|
950006 8610E
Lev: 0068610E |
1-skärig fräs / Single flute end mill D1: 1,0 mm, D2: 3,175 mm, L1: 38,0 mm, L2: 3,0 mm |
170,00 | Beställ | Beställ |
|
950006 8410E
Lev: 0068410E |
1-skärig fräs / Single flute end mill D1: 1,0 mm, D2: 6,0 mm, L1: 50,0 mm, L2: 4,0 mm |
395,00 | Beställ | Beställ |
|
950006 8612E
Lev: 0068612E |
1-skärig fräs / Single flute end mill D1: 1,2 mm, D2: 3,175 mm, L1: 38,0 mm, L2: 4,0 mm |
170,00 | Beställ | Beställ |
|
950006 8015E
Lev: 0068015E |
1-skärig fräs / Single flute end mill D1: 1,5 mm, D2: 3,0 mm, L1: 38,0 mm, L2: 5,0 mm |
215,00 | Beställ | Beställ |
|
950006 8615E
Lev: 0068615E |
1-skärig fräs / Single flute end mill D1: 1,5 mm, D2: 3,175 mm, L1: 38,0 mm, L2: 4,0 mm |
170,00 | Beställ | Beställ |
|
950006 8415Y
Lev: 0068415Y |
1-skärig fräs / Single flute end mill D1: 1,5 mm, D2: 4,0 mm, L1: 40,0 mm, L2: 5,0 mm |
335,00 | Beställ | Beställ |
|
950006 8415E
Lev: 0068415E |
1-skärig fräs / Single flute end mill D1: 1,5 mm, D2: 6,0 mm, L1: 50,0 mm, L2: 7,0 mm |
395,00 | Beställ | Beställ |
|
950006 8415A
Lev: 0068415A |
1-skärig fräs / Single flute end mill D1: 1,5 mm, D2: 6,0 mm, L1: 50,0 mm, L2: 3,0 mm |
375,00 | Beställ | Beställ |
|
950007 8415E
Lev: 0078415E |
1-skärig fräs / Single flute end mill D1: 1,5 mm, D2: 6,0 mm, L1: 58,0 mm, L2: 7,0 mm |
375,00 | Beställ | Beställ |
|
950006 8016E
Lev: 0068016E |
1-skärig fräs / Single flute end mill D1: 1,6 mm, D2: 3,0 mm, L1: 38,0 mm, L2: 5,0 mm |
215,00 | Beställ | Beställ |
|
950006 8020G
Lev: 0068020G |
1-skärig fräs / Single flute end mill D1: 2,0 mm, D2: 3,0 mm, L1: 40,0 mm, L2: 6,0 mm |
205,00 | Beställ | Beställ |
|
950006 8020E
Lev: 0068020E |
1-skärig fräs / Single flute end mill D1: 2,0 mm, D2: 3,0 mm, L1: 40,0 mm, L2: 8,0 mm |
215,00 | Beställ | Beställ |
|
950006 8020L
Lev: 0068020L |
1-skärig fräs / Single flute end mill D1: 2,0 mm, D2: 3,0 mm, L1: 40,0 mm, L2: 10,0 mm |
215,00 | Beställ | Beställ |
|
950006 8020W
Lev: 0068020W |
1-skärig fräs / Single flute end mill D1: 2,0 mm, D2: 3,0 mm, L1: 65,0 mm, L2: 15,0 mm |
465,00 | Beställ | Beställ |
|
950006 8620G
Lev: 0068620G |
1-skärig fräs / Single flute end mill D1: 2,0 mm, D2: 3,175 mm, L1: 40,0 mm, L2: 5,0 mm |
205,00 | Beställ | Beställ |
|
950006 8620E
Lev: 0068620E |
1-skärig fräs / Single flute end mill D1: 2,0 mm, D2: 3,175 mm, L1: 38,0 mm, L2: 8,0 mm |
170,00 | Beställ | Beställ |
|
950006 8620F
Lev: 0068620F |
1-skärig fräs / Single flute end mill D1: 2,0 mm, D2: 3,175 mm, L1: 40,0 mm, L2: 11,5 mm |
205,00 | Beställ | Beställ |
|
950006 8432Y
Lev: 0068432Y |
1-skärig fräs / Single flute end mill D1: 2,0 mm, D2: 4,0 mm, L1: 40,0 mm, L2: 8,0 mm |
335,00 | Beställ | Beställ |
|
950006 8432A
Lev: 0068432A |
1-skärig fräs / Single flute end mill D1: 2,0 mm, D2: 6,0 mm, L1: 50,0 mm, L2: 5,0 mm |
375,00 | Beställ | Beställ |
|
950006 8932A
Lev: 0068932A |
1-skärig fräs / Single flute end mill D1: 2,0 mm, D2: 6,0 mm, L1: 50,0 mm, L2: 5,0 mm, BS: x |
425,00 | Beställ | Beställ |
|
950006 8432E
Lev: 0068432E |
1-skärig fräs / Single flute end mill D1: 2,0 mm, D2: 6,0 mm, L1: 50,0 mm, L2: 7,0 mm |
375,00 | Beställ | Beställ |
|
950006 8932E
Lev: 0068932E |
1-skärig fräs / Single flute end mill D1: 2,0 mm, D2: 6,0 mm, L1: 50,0 mm, L2: 7,0 mm, BS: x |
425,00 | Beställ | Beställ |
|
950006 8432L
Lev: 0068432L |
1-skärig fräs / Single flute end mill D1: 2,0 mm, D2: 6,0 mm, L1: 50,0 mm, L2: 11,0 mm |
375,00 | Beställ | Beställ |
|
950007 8420E
Lev: 0078420E |
1-skärig fräs / Single flute end mill D1: 2,0 mm, D2: 6,0 mm, L1: 58,0 mm, L2: 7,0 mm |
375,00 | Beställ | Beställ |
|
950006 8024A
Lev: 0068024A |
1-skärig fräs / Single flute end mill D1: 2,4 mm, D2: 3,0 mm, L1: 40,0 mm, L2: 5,5 mm |
215,00 | Beställ | Beställ |
|
950006 8024E
Lev: 0068024E |
1-skärig fräs / Single flute end mill D1: 2,4 mm, D2: 3,0 mm, L1: 40,0 mm, L2: 8,0 mm |
215,00 | Beställ | Beställ |
|
950006 8024L
Lev: 0068024L |
1-skärig fräs / Single flute end mill D1: 2,4 mm, D2: 3,0 mm, L1: 40,0 mm, L2: 10,0 mm |
215,00 | Beställ | Beställ |
|
950006 8624E
Lev: 0068624E |
1-skärig fräs / Single flute end mill D1: 2,4 mm, D2: 3,175 mm, L1: 38,0 mm, L2: 8,0 mm |
170,00 | Beställ | Beställ |
|
950007 8424E
Lev: 0078424E |
1-skärig fräs / Single flute end mill D1: 2,4 mm, D2: 6,0 mm, L1: 50,0 mm, L2: 8,0 mm |
375,00 | Beställ | Beställ |
|
950006 8425A
Lev: 0068425A |
1-skärig fräs / Single flute end mill D1: 2,5 mm, D2: 6,0 mm, L1: 50,0 mm, L2: 5,0 mm |
375,00 | Beställ | Beställ |
|
950007 8425E
Lev: 0078425E |
1-skärig fräs / Single flute end mill D1: 2,5 mm, D2: 6,0 mm, L1: 58,0 mm, L2: 8,0 mm |
375,00 | Beställ | Beställ |
|
950006 8030E
Lev: 0068030E |
1-skärig fräs / Single flute end mill D1: 3,0 mm, D2: 3,0 mm, L1: 40,0 mm, L2: 10,0 mm |
215,00 | Beställ | Beställ |
|
950006 8030Z
Lev: 0068030Z |
1-skärig fräs / Single flute end mill D1: 3,0 mm, D2: 3,0 mm, L1: 40,0 mm, L2: 10,5 mm |
215,00 | Beställ | Beställ |
|
950006 8030Y
Lev: 0068030Y |
1-skärig fräs / Single flute end mill D1: 3,0 mm, D2: 3,0 mm, L1: 65,0 mm, L2: 8,0 mm |
405,00 | Beställ | Beställ |
|
950006 8030W
Lev: 0068030W |
1-skärig fräs / Single flute end mill D1: 3,0 mm, D2: 3,0 mm, L1: 65,0 mm, L2: 15,0 mm |
465,00 | Beställ | Beställ |
|
950006 8630E
Lev: 0068630E |
1-skärig fräs / Single flute end mill D1: 3,0 mm, D2: 3,175 mm, L1: 38,0 mm, L2: 9,0 mm |
185,00 | Beställ | Beställ |
|
950006 8630F
Lev: 0068630F |
1-skärig fräs / Single flute end mill D1: 3,0 mm, D2: 3,175 mm, L1: 40,0 mm, L2: 11,5 mm |
205,00 | Beställ | Beställ |
|
950006 8430Y
Lev: 0068430Y |
1-skärig fräs / Single flute end mill D1: 3,0 mm, D2: 4,0 mm, L1: 40,0 mm, L2: 10,0 mm |
335,00 | Beställ | Beställ |
|
950006 8430A
Lev: 0068430A |
1-skärig fräs / Single flute end mill D1: 3,0 mm, D2: 6,0 mm, L1: 50,0 mm, L2: 5,0 mm |
375,00 | Beställ | Beställ |
|
950006 8930E
Lev: 0068930E |
1-skärig fräs / Single flute end mill D1: 3,0 mm, D2: 6,0 mm, L1: 50,0 mm, L2: 8,0 mm, BS: x |
440,00 | Beställ | Beställ |
|
950006 8430E
Lev: 0068430E |
1-skärig fräs / Single flute end mill D1: 3,0 mm, D2: 6,0 mm, L1: 50,0 mm, L2: 8,0 mm |
375,00 | Beställ | Beställ |
|
950006 8930S
Lev: 0068930S |
1-skärig fräs / Single flute end mill D1: 3,0 mm, D2: 6,0 mm, L1: 50,0 mm, L2: 10,0 mm, BS: x |
425,00 | Beställ | Beställ |
|
950006 8430S
Lev: 0068430S |
1-skärig fräs / Single flute end mill D1: 3,0 mm, D2: 6,0 mm, L1: 50,0 mm, L2: 10,0 mm |
375,00 | Beställ | Beställ |
|
950006 8430L
Lev: 0068430L |
1-skärig fräs / Single flute end mill D1: 3,0 mm, D2: 6,0 mm, L1: 50,0 mm, L2: 12,0 mm |
375,00 | Beställ | Beställ |
|
950007 8430S
Lev: 0078430S |
1-skärig fräs / Single flute end mill D1: 3,0 mm, D2: 6,0 mm, L1: 58,0 mm, L2: 10,0 mm |
375,00 | Beställ | Beställ |
|
950006 8930L
Lev: 0068930L |
1-skärig fräs / Single flute end mill D1: 3,0 mm, D2: 6,0 mm, L1: 50,0 mm, L2: 12,0 mm, BS: x |
425,00 | Beställ | Beställ |
|
950007 8430E
Lev: 0078430E |
1-skärig fräs / Single flute end mill D1: 3,0 mm, D2: 6,0 mm, L1: 58,0 mm, L2: 8,0 mm |
375,00 | Beställ | Beställ |
|
950007 8435E
Lev: 0078435E |
1-skärig fräs / Single flute end mill D1: 3,5 mm, D2: 6,0 mm, L1: 58,0 mm, L2: 10,0 mm |
375,00 | Beställ | Beställ |
|
950006 8434Y
Lev: 0068434Y |
1-skärig fräs / Single flute end mill D1: 4,0 mm, D2: 4,0 mm, L1: 40,0 mm, L2: 10,0 mm |
335,00 | Beställ | Beställ |
|
950006 8434Z
Lev: 0068434Z |
1-skärig fräs / Single flute end mill D1: 4,0 mm, D2: 6,0 mm, L1: 45,0 mm, L2: 14,0 mm |
375,00 | Beställ | Beställ |
|
950006 8934E
Lev: 0068934E |
1-skärig fräs / Single flute end mill D1: 4,0 mm, D2: 6,0 mm, L1: 50,0 mm, L2: 5,0 mm, BS: x |
425,00 | Beställ | Beställ |
|
950006 8434A
Lev: 0068434A |
1-skärig fräs / Single flute end mill D1: 4,0 mm, D2: 6,0 mm, L1: 50,0 mm, L2: 5,0 mm |
375,00 | Beställ | Beställ |
|
950006 8434B
Lev: 0068434B |
1-skärig fräs / Single flute end mill D1: 4,0 mm, D2: 6,0 mm, L1: 50,0 mm, L2: 7,0 mm |
375,00 | Beställ | Beställ |
|
950006 8434E
Lev: 0068434E |
1-skärig fräs / Single flute end mill D1: 4,0 mm, D2: 6,0 mm, L1: 50,0 mm, L2: 10,0 mm |
365,00 | Beställ | Beställ |
|
950006 8434L
Lev: 0068434L |
1-skärig fräs / Single flute end mill D1: 4,0 mm, D2: 6,0 mm, L1: 50,0 mm, L2: 12,0 mm |
375,00 | Beställ | Beställ |
|
950006 8934S
Lev: 0068934S |
1-skärig fräs / Single flute end mill D1: 4,0 mm, D2: 6,0 mm, L1: 50,0 mm, L2: 14,0 mm, BS: x |
415,00 | Beställ | Beställ |
|
950007 8440E
Lev: 0078440E |
1-skärig fräs / Single flute end mill D1: 4,0 mm, D2: 6,0 mm, L1: 58,0 mm, L2: 10,0 mm |
375,00 | Beställ | Beställ |
|
950007 8440L
Lev: 0068440L |
1-skärig fräs / Single flute end mill D1: 4,0 mm, D2: 6,0 mm, L1: 58,0 mm, L2: 18,0 mm |
400,00 | Beställ | Beställ |
|
950006 8434F
Lev: 0068434F |
1-skärig fräs / Single flute end mill D1: 4,0 mm, D2: 6,0 mm, L1: 58,0 mm, L2: 20,0 mm |
400,00 | Beställ | Beställ |
|
950006 8934L
Lev: 0068934L |
1-skärig fräs / Single flute end mill D1: 4,0 mm, D2: 6,0 mm, L1: 58,0 mm, L2: 20,0 mm, BS: x |
400,00 | Beställ | Beställ |
|
950006 8434S
Lev: 0068434S |
1-skärig fräs / Single flute end mill D1: 4,0 mm, D2: 6,0 mm, L1: 60,0 mm, L2: 14,0 mm |
400,00 | Beställ | Beställ |
|
950006 8435B
Lev: 0068435B |
1-skärig fräs / Single flute end mill D1: 5,0 mm, D2: 6,0mm, L1: 50,0 mm, L2: 8,0 mm |
375,00 | Beställ | Beställ |
|
950006 8435E
Lev: 0068435E |
1-skärig fräs / Single flute end mill D1: 5,0 mm, D2: 6,0 mm, L1: 50,0 mm, L2: 12,0 mm |
375,00 | Beställ | Beställ |
|
950006 8935E
Lev: 0068935E |
1-skärig fräs / Single flute end mill D1: 5,0 mm, D2: 6,0 mm, L1: 50,0 mm, L2: 12,0 mm, BS: x |
425,00 | Beställ | Beställ |
|
950006 8435L
Lev: 0068435L |
1-skärig fräs / Single flute end mill D1: 5,0 mm, D2: 6,0 mm, L1: 60,0 mm, L2: 22,0 mm |
400,00 | Beställ | Beställ |
|
950006 8935L
Lev: 0068935L |
1-skärig fräs / Single flute end mill D1: 5,0 mm, D2: 6,0 mm, L1: 60,0 mm, L2: 22,0 mm, BS: x |
425,00 | Beställ | Beställ |
|
950006 8460C
Lev: 0068460C |
1-skärig fräs / Single flute end mill D1: 6,0 mm, D2: 6,0 mm, L1: 50,0 mm, L2: 8,0 mm |
375,00 | Beställ | Beställ |
|
950006 8460E
Lev: 0068460E |
1-skärig fräs / Single flute end mill D1: 6,0 mm, D2: 6,0 mm, L1: 50,0 mm, L2: 14,0 mm |
375,00 | Beställ | Beställ |
|
950006 8960E
Lev: 0068960E |
1-skärig fräs / Single flute end mill D1: 6,0 mm, D2: 6,0 mm, L1: 50,0 mm, L2: 14,0 mm, BS: x |
425,00 | Beställ | Beställ |
|
950006 8460L
Lev: 0068460L |
1-skärig fräs / Single flute end mill D1: 6,0 mm, D2: 6,0 mm, L1: 60,0 mm, L2: 20,0 mm |
375,00 | Beställ | Beställ |
|
950006 8960L
Lev: 0068960L |
1-skärig fräs / Single flute end mill D1: 6,0 mm, D2: 6,0 mm, L1: 60,0 mm, L2: 20,0 mm, BS: x |
425,00 | Beställ | Beställ |
|
950006 8460A
Lev: 0068460A |
1-skärig fräs / Single flute end mill D1: 6,0 mm, D2: 6,0 mm, L1: 60,0 mm, L2: 25,0 mm |
490,00 | Beställ | Beställ |
|
950006 8460B
Lev: 0068460B |
1-skärig fräs / Single flute end mill D1: 6,0 mm, D2: 6,0 mm, L1: 65,0 mm, L2: 30,0 mm |
490,00 | Beställ | Beställ |
|
950006 8079E
Lev: 0068079E |
1-skärig fräs / Single flute end mill D1: 7,0 mm, D2: 8,0 mm, L1: 60,0 mm, L2: 14,0 mm |
430,00 | Beställ | Beställ |
|
950006 8080E
Lev: 0068080E |
1-skärig fräs / Single flute end mill D1: 8,0 mm, D2: 8,0 mm, L1: 60,0 mm, L2: 14,0 mm |
430,00 | Beställ | Beställ |
|
950006 8080L
Lev: 0068080L |
1-skärig fräs / Single flute end mill D1: 8,0 mm, D2: 8,0 mm, L1: 60,0 mm, L2: 20,0 mm |
480,00 | Beställ | Beställ |
|
950006 8080A
Lev: 0068080A |
1-skärig fräs / Single flute end mill D1: 8,0 mm, D2: 8,0 mm, L1: 60,0 mm, L2: 25,0 mm |
605,00 | Beställ | Beställ |
|
950006 8080B
Lev: 0068080B |
1-skärig fräs / Single flute end mill D1: 8,0 mm, D2: 8,0 mm, L1: 80,0 mm, L2: 32,0 mm |
750,00 | Beställ | Beställ |
|
950006 8470E
Lev: 0068470E |
1-skärig fräs / Single flute end mill D1: 10,0 mm, D2: 10,0 mm, L1: 60,0 mm, L2: 20,0 mm |
520,00 | Beställ | Beställ |
|
950006 8470L
Lev: 0068470L |
1-skärig fräs / Single flute end mill D1: 10,0 mm, D2: 10,0 mm, L1: 100,0 mm, L2: 40,0 mm |
990,00 | Beställ | Beställ |
